Controls and Automation

Our Standard Control Systems include NEMA 12 or NEMA 4 Enclosures.

Typical brands are Saginaw,
Rittal, Hoffman.

Includes main breaker with lockable flange mount handle, interior lighting, color warning device, Ethernet and 120VAC power outlet, AC Units as required, various control voltage and
warning labels. All of our control panels leave our shop with its UL Mark.

All control panels include about 25% available space for expansion. Reducing installation and programming costs for future additions.

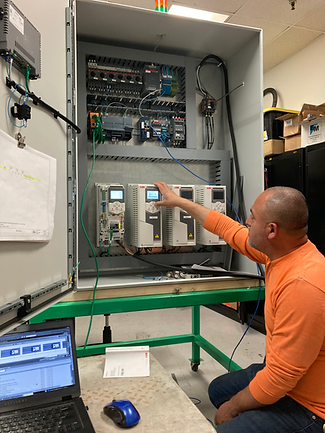

Titus uses ABB Drives to control motor speed based on the equipment or application. They provide user friendly display with parameter description for easy and intuitive parameterization and troubleshooting.

Our drives are controlled with Profibus or Ethernet communication protocols that allow wide control and status feedback to the Operators via the HMI.
This protocols reduce excess control wiring improving assembly and connection time. All drives come with built-in line reactors for drive protection as well as a user display that allows parameter backups, local and remote control along other features.

Reduces 80% of wiring compared to traditional starters, allowing for faster assembly times and ease of troubleshooting.

Has Remote Fault reset” from HMI, eliminating necessity to access control panel to reset tripped motor protector. One starter model is configurable for a range from 2 HP to 10 HP motors. This model Reduces inventory and spare parts required.

​

Realtime motor current draw display on HMI. This eliminates the need to work on a live panel to check current draw with a meter.

Allows signaling of premature motor overloading by displaying a Warning signal on touch screen. You can replace starter with new without having to disconnect any wires.

Safety integrated Program Logic Controller with safety input and output cards (Cards with Yellow labels). This allows for distributed Safety I/O racks that eliminate long wire runs to main control panel.

It is fully expandable reducing installation time and programming.

It also provides a single point of connection from safety device i.e. estop push button and PLC input card.​

This allows faster trouble shooting times. A single LED will let you know the status of the circuit. Our PLCs come with Ethernet and profibus communication ports.

Our Siemens HMIs are highly reliable and come in various sizes. The design is easy to understand and operate.

We provide navigation buttons to various sections of our controls such as Auto Start and runtime screen, emergency stop zones, flow chart, motor and speed control, alarm logs, etc.

On bigger systems we provide more than one HMI for redundancy and at key locations through out the MRF. They communicate via Ethernet and are accessible via remote access for updates and upgrades.

SCADA Titus System offers a comprehensive SCADA Solution that allows Control and Monitoring from almost any location. Besides providing monitoring capabilities it also comes with an array of daily, weekly and historical reports such as runtime-downtime, alarms events, shutdown reasons, production reports, tag historian, to name a few.

Call us for a demonstration

For many years Titus has provided unique Wireless solutions for mobile monitoring and control. Our Rugged Tablet PC has enable Operators and Maintenance personnel the ability to control and make adjustments on the fly. They can run tests while doing maintenance and supervise the system remotely.
When purchasing this option our control panels include a Wifi Access point that allows communication between PLC and Mobile Tablet.
